Brand Name : Huilian
Model Number : F22 F35 F45
Certification : ISO9001
Place of Origin : China
MOQ : 1 Pieces
Price : Negotiable
Payment Terms : L/C, T/T, MoneyGram
Supply Ability : 10000 PCS per week
Delivery Time : 1-7days
Packaging Details : Wooden Case
Part Name : side bolt nut through bolt
Model : F22 F35 F45
Material : 42CrMo
Port : HuangPu,GuangZhou
Advantage : Long Durability
Quainy : High Guarantee
Purpose : Demolition, Mining, Quarry, Road, Bridge
Finish : Smooth

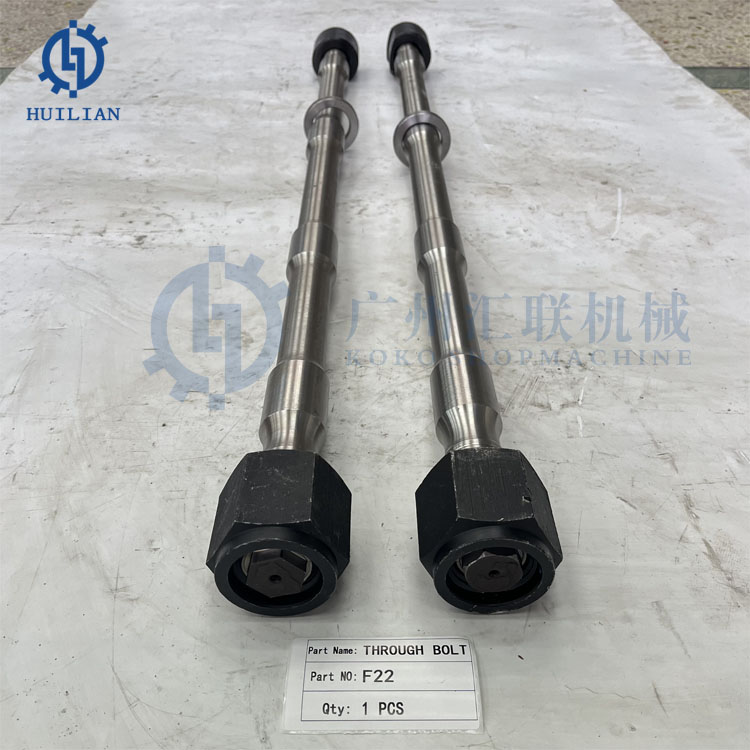

F22 F35 F45 Hydraulic Rock Breaker Parts Side Bolts Through Bolts with Nuts for Hydraulic Breaker Spare Parts Through Bolt
Product Name | Hydraulic Breaker Bolt |
Materials | 40Cr,42CrMo |
Advantages | 1).Powerful impact strike |
2).Stronger wear resistance | |
3).Longer durability | |
4).Suitable for most breaker hammer | |
Manufacturing Process | Forging→Turnery→Heat treatment→Ultrasonic flaw detection→Hardness test |
Applicable Models | F22 F35 F45 |
As a professional domestic manufacturer of hydraulic breaker parts, Our company produces parts with the best raw materials, such asxingcheng, daye, xining and other first-class alloy steel , so that the products have more strong wear and fatigue resistance.We
cooperate with NOK, PARKER and other first-class brand seal kit suppliers to improve the sealing performance of produds.
Precise fit
We understand that every application has different requirements for side plate bolts. That's why we offer a wide range of side plate bolts, from different lengths to diameters, from coarse to fine threads. This makes it possible to find the right bolt for your side plate connection needs, whether you're assembling large industrial equipment or manufacturing small precision instruments. This precise fit not only saves you time in finding the right bolt, but also avoids potential safety hazards due to poor fit.
PRODUCT SPECIFICATIONS
FURUKAWA HB20G | 48X447MM |
FURUKAWA F22 | 48X447MM |
SOOSAN SB81 | 48X447MM |
GBGB8AT | 48X447MM |
GB GB220E | 48X447MM |
TOKU TNB150 | 39X428MM |
TEISAKU TR210 | 42X415MM |
EVERDIGM EH322 | 42X420MM |
TOYO THBB1401 | 42X380MM |
KWANGLIM SG2100 | 42X423MM |
MKB MKB 1500 | 42X420MM |
DAEMO DMB2200 | 42X405MM |
SOOSAN SB81N | 48X421MM |
SOOSAN SB100 | 48X466MM |
FURUKAWA HB30G | 48X510MM |
SOOSAN SB40 | 27X230MM |
GB2T | 30X260MM |
GB5T | 30X330MM |
SOOSAN SB50 | 36X312MM |
SOOSAN SB50 | 36X330MM |
Hydraulic hammer bolts
The penetration bolt on the crushing hammer is a key fastener, which plays an important role in the overall structure of the crushing hammer. This specially designed bolt not only carries the task of connecting the various parts of the structure, but also is responsible for maintaining the stability and safety of the crushing hammer in harsh working environments.
Penetration bolts are typically made of high-strength alloy steel, which has excellent tensile, shear and fatigue resistance to maintain their integrity and reliability under extreme operating conditions. The surface is usually treated with special treatment, such as galvanized or sprayed with anti-corrosion coating, to improve the corrosion resistance of the bolt and extend its service life.
In a crushing hammer, the main role of the through bolt is to firmly connect the hammer head to the hammer body, while allowing for removal for repair or replacement of parts if necessary. Its design takes into account both the huge impact and vibration generated by the crushing hammer while working, and to ensure the sealing of the connecting part to prevent the infiltration of liquid or solid particles leading to damage to the internal parts.
WHY CHOOSE US
➤Own Design and Technology
➤Best Quality and Service
➤Global Enterprise
➤Various Model Line-up
➤Excellent Crushing Strength
➤Beyond Comparison In Terms of Solidness
Recommend Products
Through/Side Bolt | SB40 SB43 SB45 SB50 SB60 SB70 SB81 SB100 SB121 SB131 SB141 SB151 |
Chisel Rod | HB15G 20G 30G 40G F22 F35 F45 |
Inner Outer Bushing | EDT400 EDT435 EDT800 EDT2000 EDT2000F EDT2200A EDT3500F EDT4500 |
Rod Pin | GB1T GB2T GB3T GB4T GB6T GB8T GB11T GB175 GB180 GB630E GB210D |
Piston | RHB305 RHB313 RHB322/325/326 RHB323/321 RHB330 RHB324/326 RHB180 |
Piston Ring | TNB5M TNB7E TNB7J TNB16B TNB141 TNB150 TNB151 TNB190 TNB230 TNB310 |
Reversing Control Valve | THBB801 THBB1400 THBB1600 THBB175L THBB190 |
Accumulator | BLTB40 BLTB45 BLTB53 BLTB70 BLTB75 BLTB190 BLTB200 BLTB205 BLTB210 |
Nitrogen Gas Charging Valve | SB40 SB43 SB45 SB50 SB60 SB70 SB81 SB100 SB121 SB131 SB141 SB151 |
Nitrogen Gas Charger Kit | HB15G 20G 30G 40G F22 F35 F45 |
Oil Seal Kit | EDT400 EDT435 EDT800 EDT2000 EDT2000F EDT2200A EDT3500F EDT4500 |
Rubber Diaphragm | GB1T GB2T GB3T GB4T GB6T GB8T GB11T GB175 GB180 GB630E GB210D |
Cylinder Front Head | RHB305 RHB313 RHB322/325/326 RHB323/321 RHB330 RHB324/326 RHB180 |
Cylinder Back Head | TNB5M TNB7E TNB7J TNB16B TNB141 TNB150 TNB151 TNB190 TNB230 TNB310 |
Cylinder | THBB801 THBB1400 THBB1600 THBB175L THBB190 |
Main Body | BLTB40 BLTB45 BLTB53 BLTB70 BLTB75 BLTB190 BLTB200 BLTB205 BLTB210 |
Triangle Type Breaker | SB40 SB43 SB45 SB50 SB60 SB70 SB81 SB100 SB121 SB131 SB141 SB151 |
Excavator Box Silenced Type | HB15G 20G 30G 40G F22 F35 F45 |
We Can Provide Following Hydraulic Breaker Models
Hammer Parts | Main Body | Back Head | Charging Valve | Cylinder |
Socket Plug | Piston | Adapter | Valve | Valve Plug |
Front Head | Grease Nipple | Rod Pin | Stop Pin | Rubber Plug |
Ring Bush | Thrust Bush | Upper Bush | Front Cover | Tool Bush |
Rod Moil Point | Chisel | Washer | Through Bolt | Side Rod |
Air Check Valve | Valve Adjuster | Accumulator | Accumulator Body | Accumulator Cover |
Charging V/V | Diaphragm | Seal Kit | O-Ring Seal | Gas Seal |
Buffer Seal | Dust Seal | U-Packing | Back-up ring | Side Bolt |
Down Cushion | Tool Set | N2 Gas Charging Set | N2 Gas Cylinder | B-3way valve assy |
Seal Retainer | Valve Sleeve | Front Head Pin | Lower Bush | Hex Nut |
Socket Bolt | Step Seal | Upper Cushion | Rubber Pad | Shock Absorber |
Product Specification
Model | through bolts | side bolts | Modal | through bolts | side bolts |
HB8G | M27*635 | M30*282 | SB10 | M20*445 | M16*190 |
HB10G | M33*738 | M36*380 | SB20 | M22*490 | M18*200 |
HB15G | M36*815 | M42*420 | SB30 | M24*525 | M20*190 |
HB20G | M42*970 | M48*450 | SB35 | M24*555 | M24*200 |
HB30G | M48*1050 | M48*510 | SB40 | M27*575 | M27*230 |
HB40G | M52*1150 | M56*520 | SB43 | M30*710 | M30*260 |
HB50G | M60*1524 | M60*620 | SB45 | M33*840 | M30*280 |
FX15G | M36*830 | M42*420 | SB50 | M39*885 | M36*310 |
FX220 | M42*956 | M48*454 | SB60 | M42*976 | M48*410 |
FX270 | M50*1030 | M48*454 | SB70 | M48*1022 | M48*450 |
FX360 | M55*1095 | M55*489 | SB81 | M52*1050 | M48*440 |
FX470 | M62*1190 | M60*569 | SB100 | M56*1120 | M56*490 |
F12 | M33*755 | M36*380 | SB121 | M56*1150 | M56*510 |
F19 | M39*800 | SB130 | M56*1210 | M56*520 | |
F35 | M50*1066 | M48*1050 | SB131 | M56*1225 | M56*530 |
F45 | M48*1050 | M48*1050 | SB140 | M58*1300 | M58*560 |
FX700 | M48*1050 | M48*1050 | SB151 | M56*1370 | M56*560 |
FHB190 | M48*1050 | M48*1050 | SB147 | M58*1357 | M56*540 |
FX190 | M48*1050 | M48*1050 | SB177 | M85*1650 | |
B1T | M24*530 | TNB5M | M24*580 | ||
GB2T | M27*585 | TNB7E | M36*760 | ||
GB3T | M30*610 | TNB7I | M36*342 | ||
GB4T | M33*805 | TNB16B | M48*1190 | ||
GB6T | M42*976 | TNB141 | M42*920 | ||
GB8T | M52*1052 | TNB150 | M42*1010 | ||
GB11T | M56*1150 | M56*516 | TNB151 | M48*421 | |
GB175 | M58*1390 | M58*600 | TNB190 | M48*1080 | |
GB180 | M60*1540 | TNB230 | M52*1210 | ||
GB630E | M60*1540 | TNB310 | M52*1260 | ||
GB210D | M70*1658 | THBB401 | M27*588 | ||
RHB305 | M27*580 | THBB801 | M36*765 | ||
RHB313 | M36*812 | M36*330 | THBB1400 | M40*1265 | |
RHB322/32 | M42*1160 | THBB1600 | M46*1250 | ||
RHB323/32 | M42*1080 | THBB175L | M60*1500 | ||
RHB330 | M50*1240 | THBB190 | M60*1700 | ||
RHB324/32 | M42*1086 | ||||
RHB180 | M60*1500 | ||||
Modal | through bolts | side bolts | Modal | through bolts | side bolts |
TSK155 | M52*1310 | M52*510 | MKB1500V1 | M40*1037 | M42*380 |
TSK210 | M40*975 | MKB1500V2 | M40*1057 | M42*426 | |
TSK220 | M42*1080 | S2200 | M42*1086 | M42*435 | |
TSK300 | M52*1270 | DWB3700 | M48*1035 | M48*520 | |
HM960 | M35*950 | SG2800 | M56*1160 | M60*495 | |
S1300 | M36*900 | XB12G | M36*365 | ||
F19 | M39*800 | CMB80T | M52*473 | ||
OUB312 | M40*950 | DAEW5000 | M52*1170 | M52*540 | |
TR210 | M40*965 | M42*441 | KB450G | M52*1140 | M52*600 |
SG400 | M24*350 | Kangsan121 | M60*520 | ||
SG2100-1 | M40*1004 | JSB43T | M30*607 | ||
SG2100-2 | M40*1008 | B360 | M58*1300 | ||
SG2100-3 | M40*1014 | EHB-30 | M52*1255 | ||
MKB1500 | M42*486 |
As a manufacturer of crushing hammer bolts, we know the importance of bolts in crushing hammer and are committed to providing customers with high quality products. Our bolts have the following features:
High quality materials:
We use high-strength alloy steel as the main material to ensure excellent tensile, shear and fatigue resistance of bolts. This material can be stable in a variety of extreme working environments, ensuring the safe operation of the hammer.
Advanced technology:
We use advanced heat treatment technology and precision machining technology to ensure the best balance of hardness and toughness of bolts. This helps to improve the wear and corrosion resistance of the bolts and extend their service life.
Special anti-corrosion treatment:
In order to further enhance the corrosion resistance of bolts, we use advanced galvanized or sprayed anti-corrosion coating technology to effectively prevent bolts from rusting or other damage in wet or corrosive environments.
FAQ
Q: Are you a manufacturer?
A: Yes,our factory was established in 2010.
Q: Are you sure your product will fit my excavator?
A: Our equipments are suitable for most excavators. Show us your excavator model, we'll confirm the solution.
Q: How about your products warranty?
A: 12 months warranty for hydraulic breaker, 3-6 months warranty for spare parts, beyond the warranty period.
Q: Can you produce according to customers' design?
A: Sure, OEM/ODM service available. We are professional manufacturer in Jiangsu.
Q: What's the MOQ and payment terms?
A: MOQ of hydraulic breaker is 1set. Payment via T/T,Western Union accepted, other terms can be negotiated.
Q: How about elivery time?
A: 5-10 work days after the payment.
Q: How about the package?
A: Our equipments wrapped by stretch film, packed by pallet or polywood case; or as requested.
Q: Which country have you exported?
A: Saudi Arabia,Korea, Thailand, Cyprus, India, Canada, Australia, Peru, Egypt, Brazil, Mexico, South Africa, etc.
![]() |
