Brand Name : HFH
Model Number : HB20G
CertifiCATEEEEEEion : ISO9001
Place of Origin : China
MOQ : 1PC
Price : $6050-7000$
Payment Terms : L/C, T/T
Supply Ability : 100PCS PER DAY
Delivery Time : 3-5 days
Packaging Details : Wooden Box, Wooden Plate
Model : HB20G
Weight : 1600KGS
Chisel diameter : 135MM
Chisel Lenght : 1200MM
Lenght : 3052MM
Required Oil Flow : 120-150 L/MIN
Working Pressure : 140-160
Impact Rate : 300-450 B.P.M.

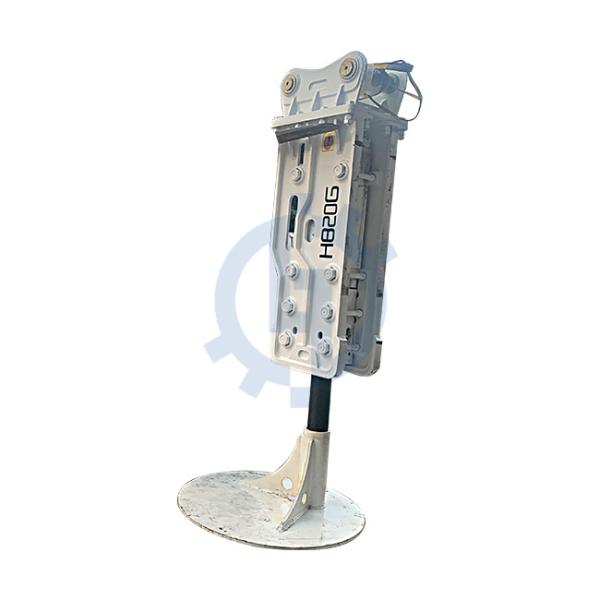

HB20G OPEN Type Hydraulic Breaker Hammer TOP MOUNTED PC200 ZX210 SK200 20t Excavator
1.Reduce noise
2.Protect the environment
Side Type
1.Overall length shorter
2.Hook back things conveniently
3.Maintenance-free
Top Type
1.Easy to loCATEEEEEEEEEEEEe and control
2.More conducive to excavator
3.Weight lighter, lower risk of broken drill rod
Model | Operating Weight(kg) | Working Flow (L/Min) | working Pressure(Bar) | Impact Rate(bpm) | Impact Rate(bpm) | Hose Diameter(inch) | Hose Diameter(inch) | ||
side
| Top | box | |||||||
HMB5G | 330 | 365 | 398 | 50-90 | 100-140 | 500-900 | 75 | 1/2 | 6-9 |
HMB15G | 1200 | 1320 | 1310 | 90-120 | 160-180 | 350-650 | 120 | 1 | 13-18 |
HMB20G | 1550 | 1600 | 1700 | 125-150 | 180-200 | 350-650 | 135 | 1 | 18-25 |
HMB30G | 2380 | 2420 | 2540 | 150-190 | 180-200 | 300-550 | 150 | 1 | 25-30 |
HMB40G | 2900 | 3020 | 3110 | 190-250 | 180-200 | 250-500 | 160 | 1 | 35-45 |
Factory
Payment Details
Terms & Conditions of Ordering:
1 .Payment Terms:
T/T (Telegraphic Transfer)
2. Delivery Term:
Based on order quantity, normally it takes 7 days for production.
Only 2 or 3 days if we have stock on your request size.
3. Transportation:
Sample order: we suggest Courier express or by air
Bulk order: we suggest by air or by sea.
4.Quality & Service:
A. There will be strict inspection and testing for every order before shipping out.
B Our sales team and Technical Support will response for your question within 24 hours,
![]() |
HB20G Open Type Hydraulic Breaker Hammer Top Mounted PC200 ZX210 SK200 20t Excavator Images |
